​Flat End Taper, Plain Cut Tungsten Carbide Burs FG | Tungsten Carbide Burs | Products

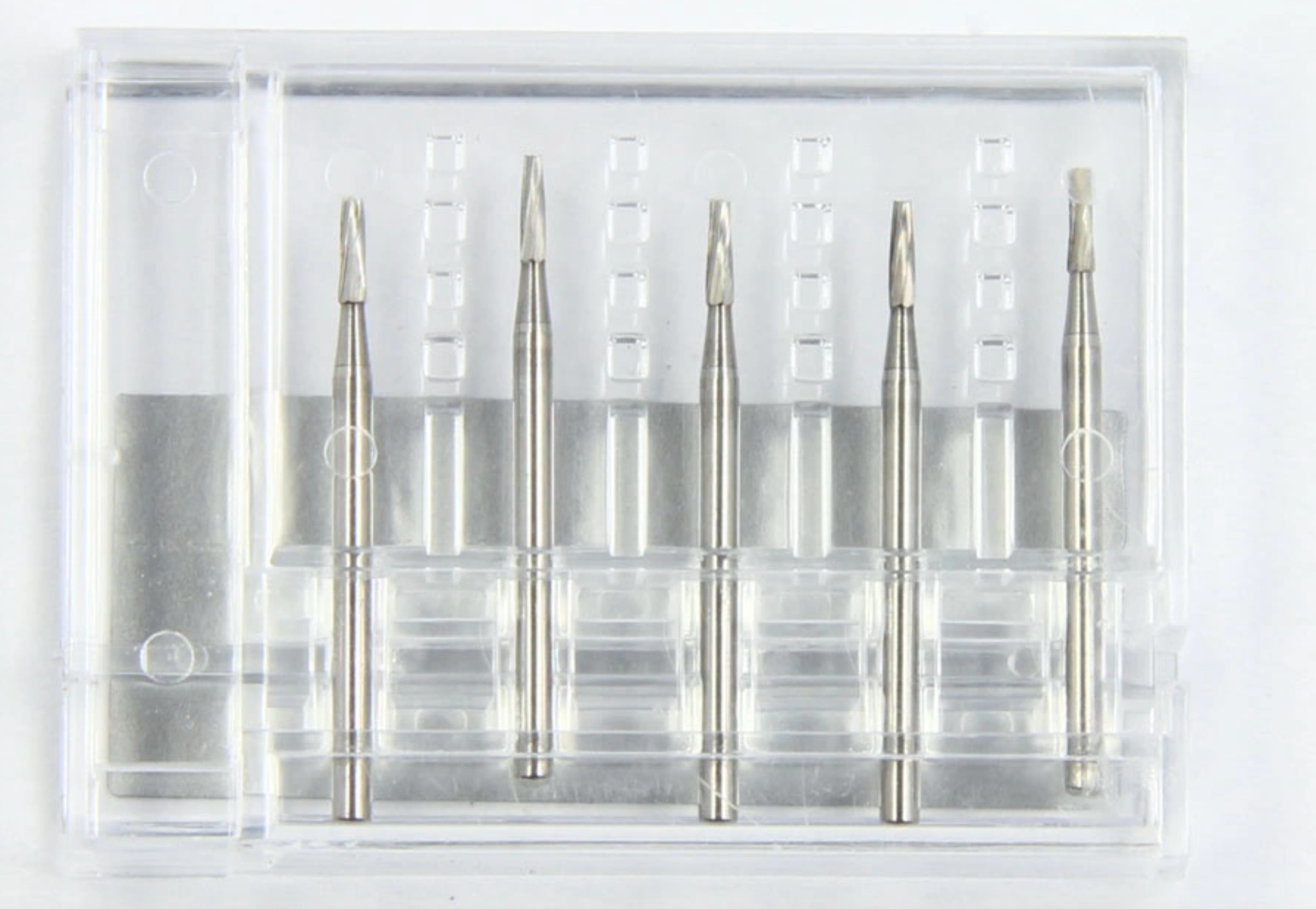

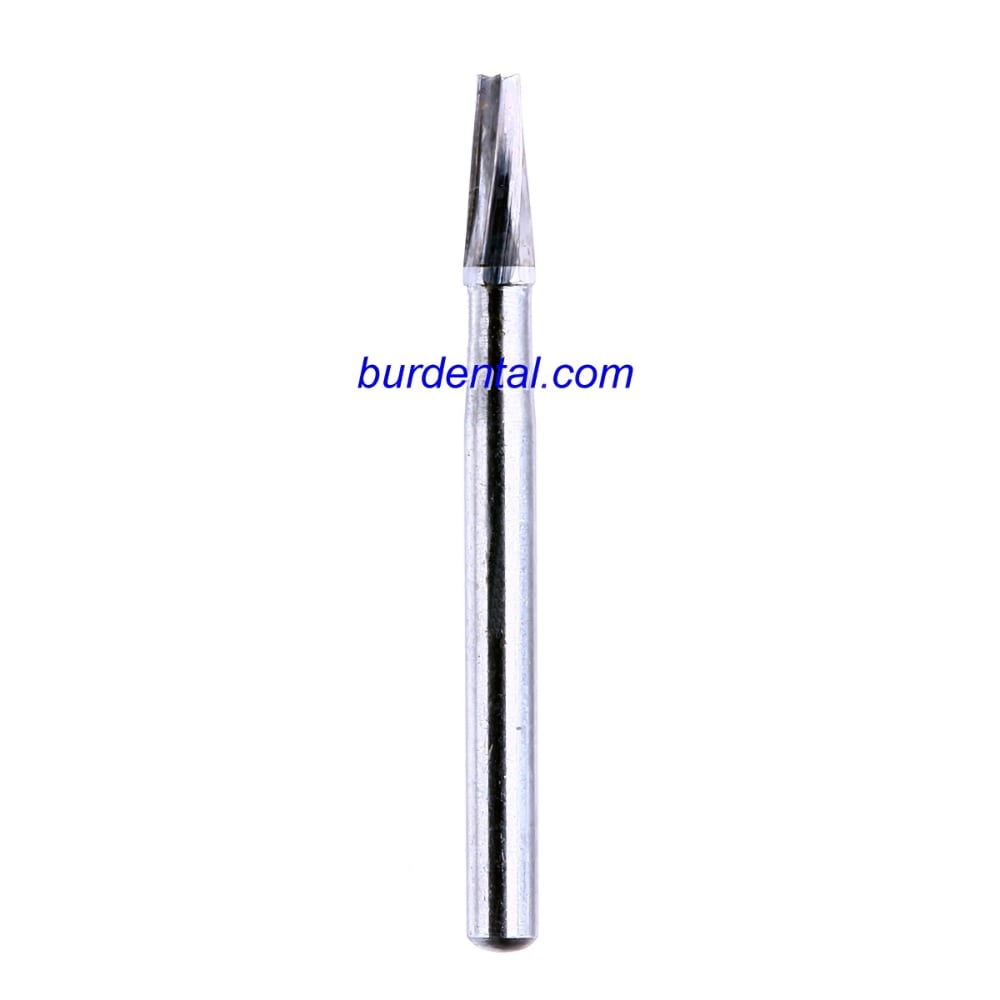

​Flat End Taper, Plain Cut Tungsten Carbide Burs FG

​Flat End Taper, Plain Cut Tungsten Carbide Burs FG

Iso Number 500.314.168.006.008
Head Diameter (1/10 Mm) 8
Cutting Length (mm) 4
Total Length(mm) 19
Shank Type 314-FG Standard
Shank Diameter(mm) 1.6
Head Shape Taper
Head Cut Plain Cut

Name Sku Total Length(mm) Head Cut Iso Number Shank Type Applications Head Diameter (1/10 Mm) Shank Diameter(mm) Cutting Length (mm) Head Shape
FG168 TCBFG168XX 19 Plain Cut 500.314.168.006.008 314-FG Standard - 8 1.6 4 Taper
FG169 TCBFG169XX 19 Plain Cut 500.314.168.006.009 314-FG Standard - 9 1.6 4 Taper
FG170 TCBFG170XX 19 Plain Cut 500.314.168.006.012 314-FG Standard - 12 1.6 4 Taper
FG171 TCBFG171XX 19 Plain Cut 500.314.168.006.012 314-FG Standard - 12 1.6 4 Taper
FG172 TCBFG172XX 19 Plain Cut 500.314.168.006.016 314-FG Standard - 16 1.6 4 Taper
FG170L TCBFG170LX 19 Plain Cut 500.314.171.006.010 314-FG Standard - 10 1.6 6 Taper
FG171L TCBFG171LX 21 Plain Cut 500.314.171.006.012 314-FG Standard - 12 1.6 6 Taper
FG X170 TCBFGX170X 25 Plain Cut 500.316.168.006.010 314-FG Standard prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 10 1.6 4 Taper
FG X171 TCBFGX171X 25 Plain Cut 500.316.168.006.012 314-FG Standard prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 12 1.6 4 Taper
FG169L TCBFG169LX 21 Plain Cut 500.314.171.006.009 314-FG Standard - 9 1.6 6 Taper
FG172L TCBFG172LX 21 Plain Cut 500.314.171.006.016 314-FG Standard - 16 1.6 6 Taper

Product Description:

B&D Technologies FG Dental Carbide Burs Drills for high-speed handpiece

  • Shaping fissure on a variety of materials. Used on gold, composite veneers or ceramics prior to final firing, they always display convincing cutting proper and an impressively long service life.
  • Prophylaxis and oral surgery; Preparation of cavities; removal of old fillings; treatment of filings; preparation of crowns.
  • Also used as engraving bits, carving bits.
  • Fit to high speed FG dental handpiece.

Dental Carbide Bur Specification:

  • Standard FG burs (ISO314, diameter 1.6mm / total length 19mm).
  • FG short shank burs (ISO313, diameter 1.6mm / total length 16mm)long shank burs (ISO 316, diameter 1.6mm / total length 25mm).
  • Standard RA / CA shank burs (ISO 204, right angle / contra angle, diameter 2.35mm/total length 22mm).
