​Flat End Taper, Cross Cut Tungsten Carbide Burs FG RA | Tungsten Carbide Burs | Products

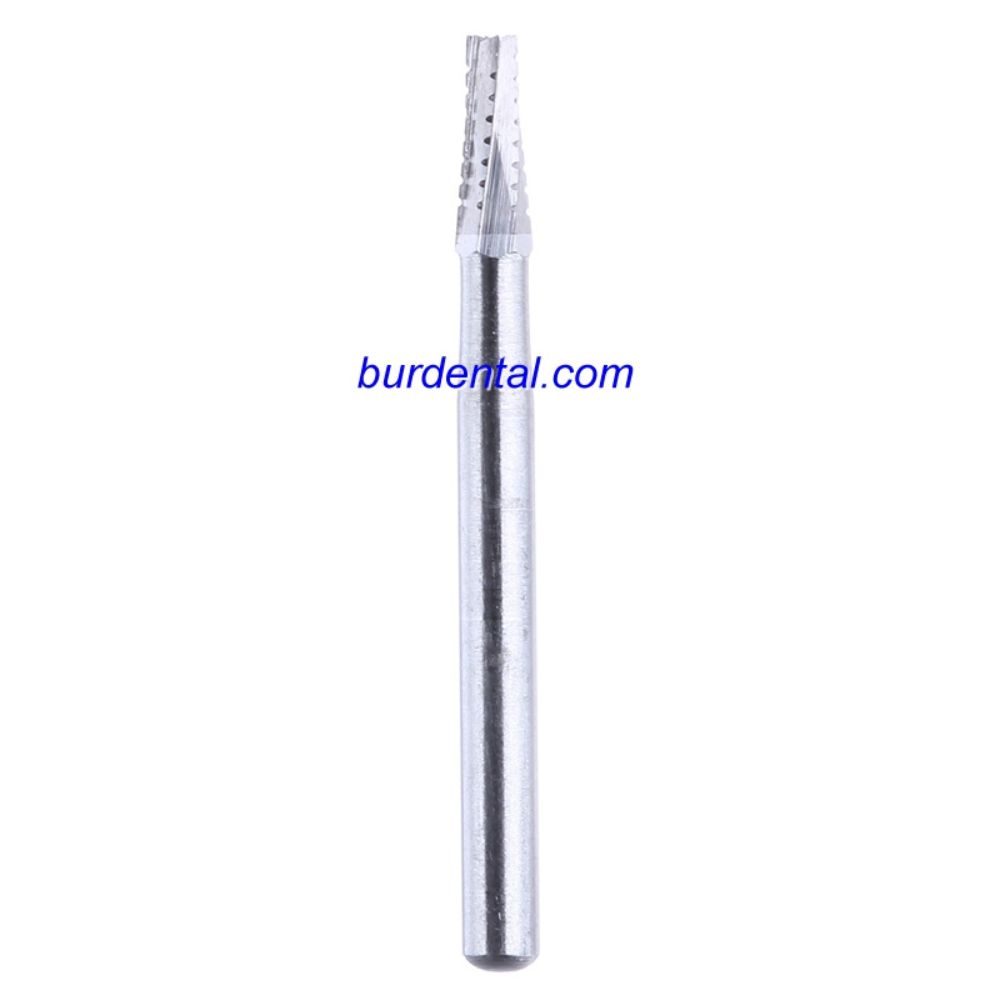

​Flat End Taper, Cross Cut Tungsten Carbide Burs FG RA

​Flat End Taper, Cross Cut Tungsten Carbide Burs FG RA

Iso Number 500.314.168.007.008
Head Diameter (1/10 Mm) 8
Cutting Length (mm) 4
Total Length(mm) 19
Shank Type 314-FG Standard
Shank Diameter(mm) 1.6
Head Shape Taper
Head Cut Cross Cut

Name Sku Shank Diameter(mm) Cutting Length (mm) Head Shape Total Length(mm) Head Cut Iso Number Shank Type Applications Head Diameter (1/10 Mm)
FG698 TCBFG698XX 1.6 4 Taper 19 Cross Cut 500.314.168.007.008 314-FG Standard - 8
FG699 TCBFG699XX 1.6 4 Taper 19 Cross Cut 500.314.168.007.009 314-FG Standard - 9
FG700 TCBFG700XX 1.6 4 Taper 19 Cross Cut 500.314.168.007.010 314-FG Standard - 10
FG701 TCBFG701XX 1.6 4 Taper 19 Cross Cut 500.314.168.007.012 314-FG Standard - 12
FG702 TCBFG702XX 1.6 4 Taper 19 Cross Cut 500.314.168.007.016 314-FG Standard - 16
FG700L TCBFG700LX 1.6 6 Taper 21 Cross Cut 500.314.171.007.010 314-FG Standard - 10
FG701L TCBFG701LX 1.6 6 Taper 21 Cross Cut 500.314.171.007.012 314-FG Standard - 12
FGX700 TCBFGX700X 1.6 4 Flat End Taper 25 Cross Cut 500.316.168.007.010 316-FG Long prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 10
FGX701 TCBFGX701X 1.6 4 Flat End Taper 25 Cross Cut 500.316.168.007.012 316-FG Long prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 12
FGX702 TCBFGX702X 1.6 4 - 25 Cross Cut 500.316.168.007.016 316-FG Long prophylaxis, orthodontics, oral surgery, preparation of cavities, preparation of crowns 16
RA699 TCBRA699XX 2.35 4 Taper 22 Cross Cut 500.204.168.007.009 204-RA/CA Standard - 9
RA700 TCBRA700XX 2.35 4 Taper 22 Cross Cut 500.204.168.007.010 204-RA/CA Standard - 10
RA701 TCBRA701XX 2.35 4 Taper 22 Cross Cut 500.204.168.007.012 204-RA/CA Standard - 12
RA702 TCBRA702XX 2.35 4 Taper 22 Cross Cut 500.204.168.007.016 204-RA/CA Standard - 16
RA703 TCBRA703XX 2.35 4 Taper 22 Cross Cut 500.204.168.007.021 204-RA/CA Standard - 21
RA704 TCBRA704XX 2.35 4 Taper 22 Cross Cut 500.204.168.007.023 204-RA/CA Standard - 23
FG702L TCBFG702LX 1.6 6 Taper 21 Cross Cut 500.314.171.007.016 314-FG Standard - 16
FG699L TCBFG699LX 1.6 6 Taper 21 Cross Cut 500.314.171.007.009 314-FG Standard - 9
RAX701 TCBRAX701X 2.35 4 Taper 26 Cross Cut 500.205.168.007.012 204-RA/CA Standard - 12

Product Description:

B&D Technologies FG Dental Carbide Burs Drills for high-speed handpiece

  • Shaping fissure on a variety of materials. Used on gold, composite veneers or ceramics prior to final firing, they always display convincing cutting proper and an impressively long service life.
  • Prophylaxis and oral surgery; Preparation of cavities; removal of old fillings; treatment of filings; preparation of crowns.
  • Also used as engraving bits, carving bits.
  • Fit to high speed FG dental handpiece.

Dental Carbide Bur Specification:

  • Standard FG burs (ISO314, diameter 1.6mm / total length 19mm).
  • FG short shank burs (ISO313, diameter 1.6mm / total length 16mm)long shank burs (ISO 316, diameter 1.6mm / total length 25mm).
  • Standard RA / CA shank burs (ISO 204, right angle / contra angle, diameter 2.35mm/total length 22mm).
